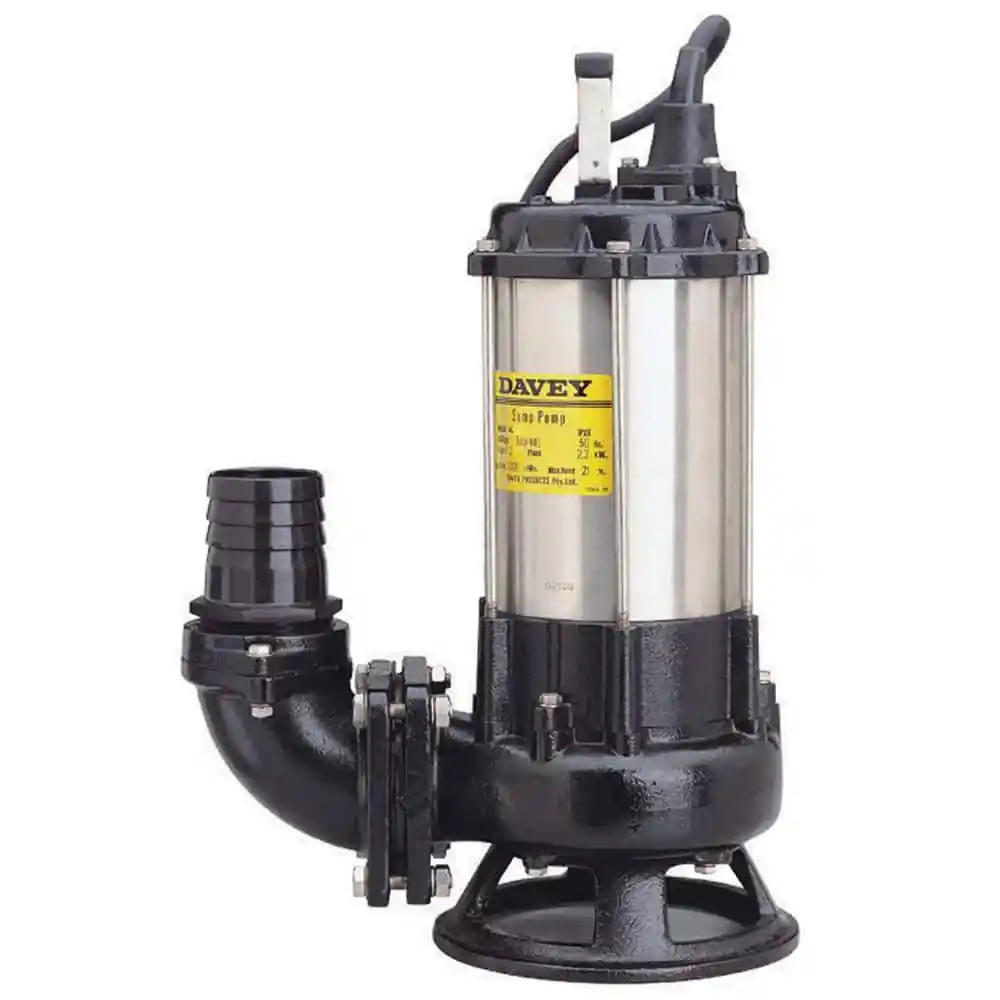

Davey D150S Single Channel Waste Pump

Davey D150S Single Channel Waste Pump

**please call us on 1300 229 606 to order any Davey products**

SKU: D150S

The D150s models are a high head, single channel, stormwater and sewage handling submersible sump pump

Capable of pumping soft solids in suspension up to 2150lpm

A choice of single or three phase motors. Installing with slide rail kits is recommended

"A" models include auto float switch

Operating Limits

Capacities to 750 LT/min

Max Total head 17.5

Max submergence 25m

Max operating temperature 40 c

maximum soft solids up to 80% of discharge size

Outlet size 3" (M)

Electrical Data

Supply Voltage 220- 240 /50 Hz single phase

Cable Length  10 metres

Output ( watts ) 1500

Start (amps)  65

Run (amps) 13

Speed  2 pole , 2850rpm

Features and Benefits

Corrosion resistant 304 stainless steel shaft, motor shell and fasteners

* Long service life

*Attractive lasting appearance

Open impeller, single channel, centrifugal design

* Able to pump soft solids in suspension

* Less susceptible to blockage

Mechanical shaft seal in oil bath with hard faced silicon carbide/ceramic seal on pump side

*Added motor protection

*Long service life

*Protect against overloading

Sand slinger lip seal

*Added protection

*Long service life

Corrosive resistant 304 stainless steel motor shell, shaft, strainer and fasteners with high quality paint finish

* Long service life

* Attractive, lasting appearance

Automatic resetting thermal overload

* Protected against overloading

HO7RNF oil resistant leads, 10 metres long with 3 pin power plug

* Easy to connect to power supply

* Longer life in dirty water

Installation & Priming

• Use a rope to position and retrieve the pump. Do not lower or retrieve the pump using the power lead as this may damage the cable entry seals, causing water leaks and unsafe operation.
• Don’t use this product for recirculating or filtering swimming pools, spas, etc. While these pumps are built to high safety standards, they are not approved for installations where people will be in the water while they are operating.
• Don’t pump abrasive materials. Sand and grit in the water being pumped will accelerate wear, causing shortened pump life.
• Keep your pump clean, particularly in situations where lint, hair or fibrous materials may get bound around the pump shaft. Regular inspection and cleaning will extend pump life.
• Make room for the float switch to operate. Automatic models have a float switch to turn them on when the water level rises and turn them off again when it has been pumped down to the safe operating level of the pump. If the float switch is not free to rise and fall, correct pump operation may not be possible.
• Don’t run your pump dry. Non-automatic models must be switched off manually or by way of an external float/level switch when the water level is reduced to the top of the pump housing.
