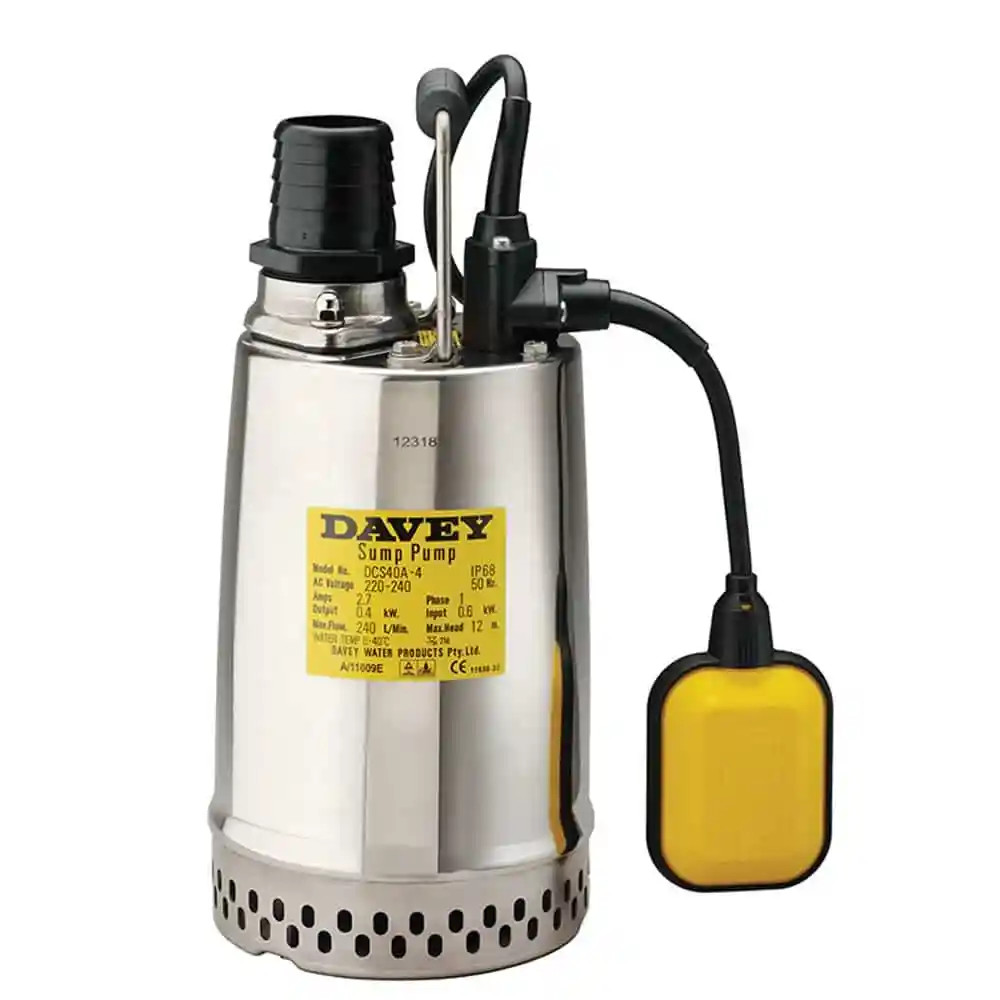

Davey DCS40M Double Case Sump Pump

Davey DCS40M (Manual) Double Case Sump Pump

**please call us on 1300 229 606 to place an order for any Davey products**

The DCS40 model and above are able to pump sewage or grey water of neutral pH containing up to 10 % of small soft organic solids (<10mm OD )

These pumps are suitable for fish ponds or aquaculture applications.

Operating Limits

Capacities to 240 LT/min

Max Total head 12m

Max submergence 10m

Max operating temperature 50 c

Outlet size 2″BSP (M)

Electrical Data

Electrical lead HO7RNF X 6m length

Phase Single

Supply Voltage / Hz  220-240 /50 Hz

Speed  2 pole , 2850rpm

Full Load Current  3.0A

kw ( nameplate ) 0.4kw

Insulation class Class F

IP rating  X8

Starting P.S.C

The “A” models include auto float switch

Features and Benefits

Open impeller, semi-vortex, centrifugal design

*Able to pump small soft solids in suspension

* Less susceptible to blockage

Hard faced silicon carbide/ ceramic mechanical shaft seal in oil bath

Electrical Data

Electrical Lead HO7RNF X 6m length

Phase Single

Supply Voltage / HZ   220-240/50Hz

* Added motor protection

* Long Service Life

Sand slinger lip seal

*Added motor protection

* Long service life

Corrosive resistant 304 stainless steel fasteners

* Long service life

* Attractive, lasting appearance

Double case with full discharge flow past internal motor shell

*Able to operate in partially submerged installations

*Better motor cooling for longer life

Automatic resetting thermal overload

*Protect against overloading

HO7RNF oil resistant leads with 3 pin power plug

*Easy to connect to power supply

*Longer life in dirty water

Installation & priming

• Use a rope to position and retrieve the pump. Do not lower or retrieve
  the pump using the power lead as this may damage the cable entry
  seals, causing water leaks and unsafe operation.
• Don’t use this product for recirculating or filtering swimming pools,
  spas, etc. While these pumps are built to high safety standards, they are
  not approved for installations where people will be in the water while
  they are operating.
• Don’t pump abrasive materials. Sand and grit in the water being
  pumped will accelerate wear, causing shortened pump life.
  Keep your pump clean, particularly in situations where lint, hair or
  fibrous materials may get bound around the pump shaft. Regular
  inspection and cleaning will extend pump life.
• Make room for the float switch to operate. Automatic models have a
  float switch to turn them on when the water level rises and turn them
  off again when it has been pumped down to the safe operating level of
  the pump. If the float switch is not free to rise and fall, correct pump
  operation may not be possible.
• Don’t run your pump dry. Non-automatic models must be switched off
  manually or by way of an external float/level switch when the water level
  is reduced to the top of the pump housing.
