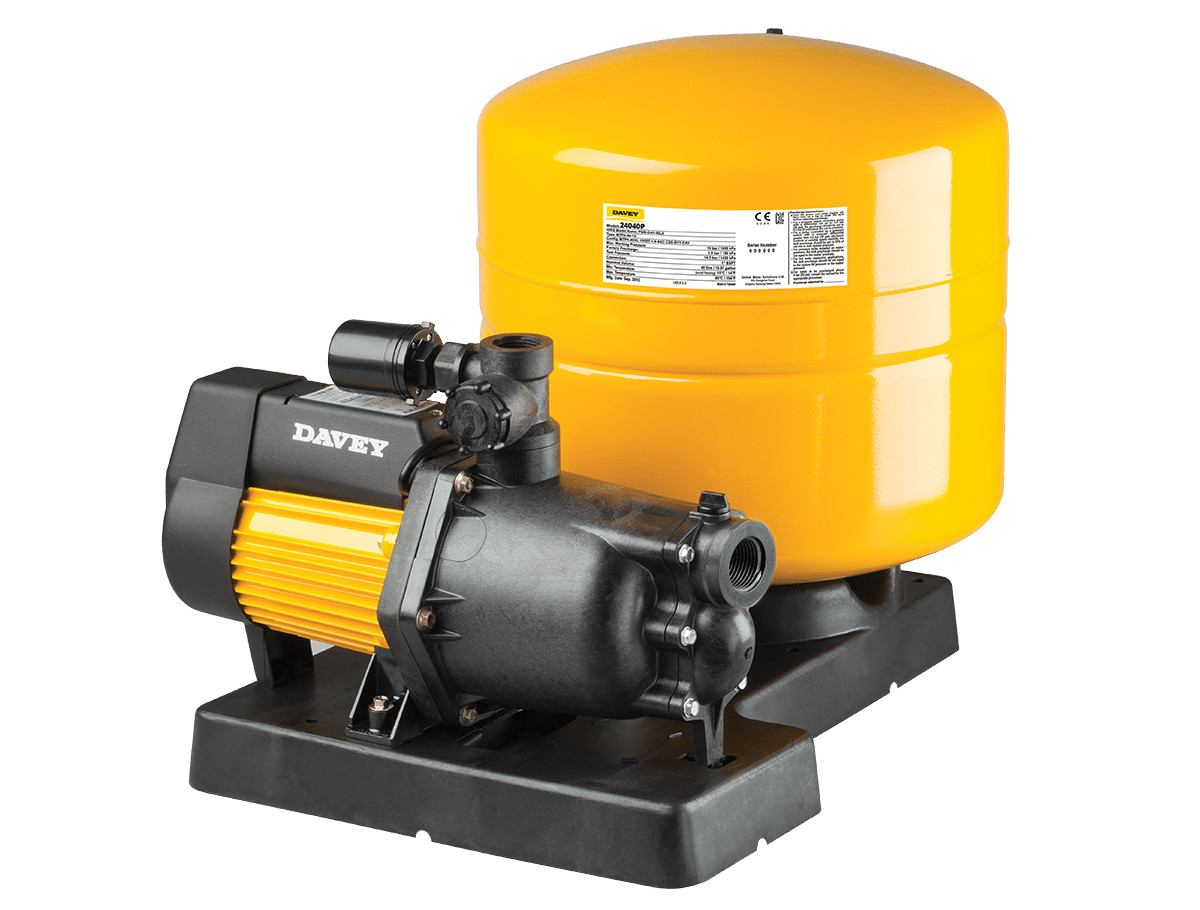

Davey Dynajet X50 with Base Mounted 40LT Pressure Tank

Davey Dynajet X50 with Base Mounted 40LT Pressure Tank

**please call us on 1300 229 606 to place an order for any Davey products**

Compact and economical, single stage jet assisted water pressure system, operated by a pressure switch. Ideal for average homes with modern appliances to large double storey homes, pressure boosting applications and for water transfer. Economical, compact 50, 70 and 90 lpm home pressure systems driven by a single stage jet assisted centrifugal pump. Base mounted systems include Supercell 40P pressure vessel and pressure switch all mounted on one convenient base.

Motor / power: 560W
Max. flow: 50T/min
Head: 46m
Inlet: 1″F / 25mm
Outlet: 1″M / 25mm
Pressure: 460kPa
Pump Cut In: 180kPa
Pump Cut Out: 390kPa
Max Suction Head: 7m
Max Liquid Temperature: 50°C
Max Ambient Temperature: 55°C
Body: Glass filler noryl
Impeller: Glass filler polycarbonate
Pump Shaft: 303L Stainless Steel
Mechanical Seal : Carbon Ceramic (synthetic)
Warranty on pump: 2 Years

Pump:

• Single stage jet assisted centrifugal with closed vane impeller.
• 303 stainless steel pump shaft.
• Internal suction side check valve fitted.
• Mechanical shaft seal.
• Oring casing seals.
• Pressure switch control with adjustable cut-in and cut-out pressure.

Motor:

• Davey manufactured.
• 2 pole, 2850rpm, 50Hz.
• TEFC with IP55 enclosure.
• Class F insulation.
• Permanently split capacitor design.
• Double contact sealed C3-HTG rated ball bearings.
• Protected against both high operating temperatures and high current by a built-in automatically resetting thermal overload.

Tank:
Captive heavy duty butyl diaphragm meets FDA (USA), Watermark (Aust), WRAS (UK) and CE requirements for potable water. Fully lined water cavity.
