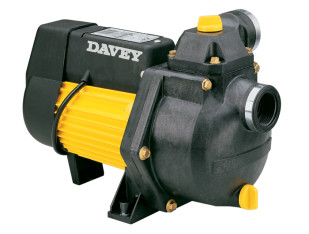

Davey Dynaprime X201 Self priming Pump – 74101

Davey Dynaprime X201 Self priming open faced impeller – 74101

**please call us on 1300 229 606 to place an order for any Davey products**

SKU: X201

APPLICATION:
Ideal for pumping clean or grey water with some small fibres or soft solids in such applications as water supply, water transfer, septic tank emptying and draining of water tanks.

FEATURES & BENEFITS:

Flows up to 195L/min and heads up to 18m

PUMP

• 1 stage (single impeller)
•  Open vane impeller
•  Stainless steel impeller wear plate
•  Inbuilt check valve
•  Mechanical shaft seal
•  O-ring casing seal

MOTOR

•  Davey manufactured
•  TEFC with IP55 enclosure
•  Class F insulation
•  Double contact C3-HTG sealed bearings
•  Inbuilt thermal overload protection
•  Plastic feet on motor shell

BENEFITS

• • Manufactured from quality corrosion resistant materials
•  TEFC motor corrosion resistant and excludes dust and dirt
•  Motor and pump designed for frequent starts
•  Quick and easy installation
•  Low maintenance
•  Easy to service if required
•  Quick self priming

INSTALLATION AND PRIMING

•  Installations with suction lift require a good quality foot valve to avoid loss of prime.
•  To prime, fill pump body and suction line through priming plug hole located above suction inlet and replace plug.

Motor / power: 630W
Max. flow: 195T/min
Head: 19m
Inlet: 1¼” / 25mm
Outlet: 1¼” / 25mm
Pressure: 180kPa
Warranty on pump: 2 Years

Warranty Period: 24 Months
