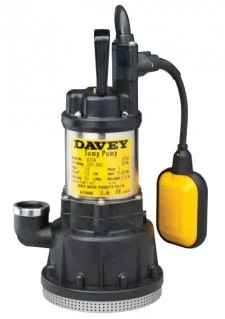

Davey D23A/B High Pressure Drainage Pump

Davey 23A/B High Pressure Submersible Drainage Pump 240V

**please call us on 1300 229 606 to order any Davey products**

SKU: D23AB

The D23a/b models are able to pump clean water of neutral pH ( ie rainwater )

Designed for pumping clean rainwater and activated by an automatic float.

The range of submersible High Pressure Drainage pumps are specialty pumps that are designed with superior reliability in mind for rainwater tanks, and suitable for pumping drinking water with a neutral pH.

Using an automatic float, it detects when water is available. Primarily used with rainwater tanks, it’s also used for lawn and garden irrigation, treated effluent disposal and water transfer from wells.

Features and Benefits

Float Switch fitted for automatic operation

Double mechanical seal, one in the oil  bath on the motor and an extra mechanical seal on pump for superior reliability and a long service life.

Corrosion resistant 304 stainless steel shaft, motor shell and fasteners for longer service life

Centrifugal multi stage 3 impeller design for low flow applications

In built automatic thermal overload to protect the motor in the event of blockage or voltage supply problems

HO7RNF oil resistant leads , 10 meters long with 3 pin power plug for longer life in dirty water and easy connection to the mains power supply.

Operating Limits

Capacities to 52 LT/min

Max Total head 22.5

Max submergence 7m

Max operating temperature 40 c

Minimum soft solids  1 mm O.D.

Outlet size 1″ (F)

Electrical Data

Supply Voltage 220-240 v  50 Hz single phase

Cable Length  10 metres

Output ( watts ) 200

Start (amps) 14

Run (amps) 1.8

Speed  2 pole , 2850rpm

Input Power (P1 )   0.38 kw

Output Power (P2 )  0.2 kw

Insulation class Class I

IP rating  X8

Starting P.S.C

Priming & Operation

• Use a rope to position and retrieve the pump. Do not lower or retrieve the pump using the power lead as this may damage the cable entry seals, causing water leaks and unsafe operation.
• Don’t use this product for recirculating or filtering swimming pools, spas, etc.
• While these pumps are built to high safety standards, they are not approved for installations where people will be in the water while they are operating.
• Don’t pump abrasive materials. Sand and grit in the water being pumped will accelerate wear, causing shortened pump life.
• Keep your pump clean, particularly in situations where lint, hair or fibrous materials may get bound around the pump shaft. Inspection every 6 months and cleaning will extend pump life.
• Make room for the float switch to operate. Automatic models have a float switch to turn them on when the water level rises and turn them off again when it has been pumped down to the safe operating level of the pump. If the float switch is not free to rise and fall, correct pump operation may not be possible.
