  • Atlas Filtri DP DUO 10" BIG

Atlas Filtri DP DUO 10" BIG

$495
Quantity:
SKU:
KITDPDUO10BIG
Weight:
0.00 KGS

Specifications:

Other Details

Flow Rate:
58 L/Min
Max Pressure:
8.3 Bar
Cartridge 1:
1 x 20­­µm Pleated Polyester 10″ Jumbo Cartridge 10″ x 4.5″
Cartridge 2:
1 x 1­µm Polyspun 10″ Jumbo Cartridge 10″ x 4.5
Application:
Whole Supply
Size:
390 x 185 x 375 (mm)

Description

Product Description

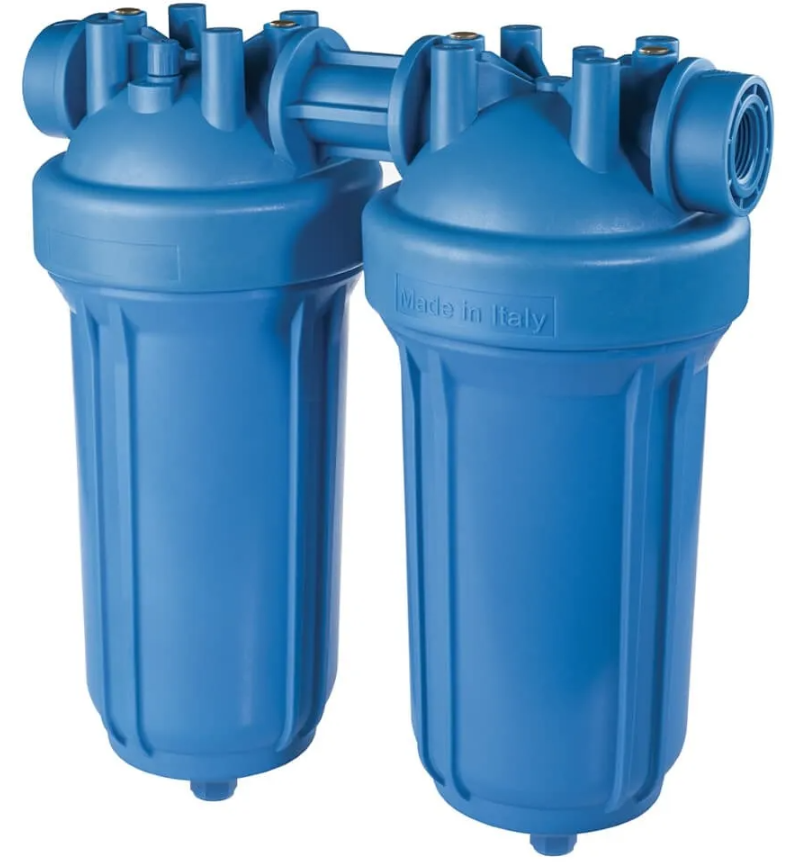

Atlas Filtri DP Duo Filter Housing 10″ Big with 1.5″ Fittings



Supplied with filters:
1 x 20­­µm Pleated Polyester 10″ Jumbo Cartridge 10″ x 4.5″ [807307]
1 x 1­µm Polyspun 10″ Jumbo Cartridge 10″ x 4.5″ [807297]

  • A Duo 10” BIG Filter housing, with 1.5” in/out plastic BSP threads, pressure gauge (manometer) ports and drain port.
  • Chooses the Duo with 2 filter bowls on a single moulded head to save time plumbing up separate housings when you need to use two in series and reduce the number of potential leak points,
  • Designed to accept 10”x 4.5” filter cartridges.
  • These are most commonly used domestic, commercial and industrial applications

Atlas Filtri DP Duo Filter

A: 375mm
B: 390mm
C: 185mm

Features

These have time and labor saving additions built in:

  • Pressure gauge ports – no more need to plumb pressure gauges separately
    • Adding pressure gauges makes it easier than ever to see when filters need changed, giving you optimal life and performance of your filters
  • Drain Ports – Making changing filters easier than ever
    • Just open the drain port and drain the water into a bucket, no more messy water splashing on the floor, and the filter bowl is lighter and easier to manage
    • Drain ports are easy to open with the your included reversible spanner, one side for the filter bowl, the other for the drain port

These are available in:

  • Mono – single filter housing
  • Duo – Double Filter housing with moulded head
  • Trio – Triple – Filter housing with moulded head

All Atlas Filtri BIG Housings come with:

  • Bracket
  • Spanner
  • Lubrikit (O-ring lubricant)
Working Conditions
Max Working Pressure 8.3bar (120 psi)
Max Working Temperature 45°C (113°F)
Min Working Temperature 4°C (39.2°F)

Filters Included

Technical Specifications
Brand Atlas Filtri
Product Type Pleated Filters
Flow Rate (L/min) 58
Material Polypropylene/Polyester Fabric
Nominal Micron Rating 20
Min Temp (degrees celsius) 4
Max Temp (degrees celsius) 45
Filter 10″ Big
Brand Atlas Filtri
Product Type Polyspun Filters
Flow Rate (L/min) 42
Material Polypropylene
Nominal Micron Rating 1
Min Temp (degrees celsius) 4
Max Temp (degrees celsius) 80
Filter 10″ Big



SEDIMENT FILTERS

  • Sediment Filters are used to remove particles from water and protect downstream taps etc from clogging
  • Sediment cartridges are resistant to attack by bacteria and chemicals and are suitable for a wide range of applications, including domestic, commercial and industrial.



CS & TS Pleated Cartridge Range

  • Polyspun cartridges are commonly used as the final filtration for sediment as damage does not compromise the micron rating
  • These depth filters have a very large surface area and better dirt holding capacity than pleated filters
  • 5 & 1 Micron versions are also often used as the final filter before a UV as drinking water standards require a minimum of 5 micron depth filtration
  • 25 Micron version is sometimes used in place of a pleated filter for those who prefer to just change filters without the need to clean them, the higher dirt holding capacity means more time between giving the filters attention
