DAB 200NXTP Pro Shallow Well Pressure Pump

$1,759

Quantity:

SKU:

200NXTP

Weight:

27.00 KGS

Specifications:

Other Details

Output:

2HP

Outlet:

1 1/4"

Max Flow:

175 L/Min

Max Head (Pressure):

41m (415kPa)

Bar:

8 Bar

Ideal For:

Clean/Rainwater

Description

Product Description

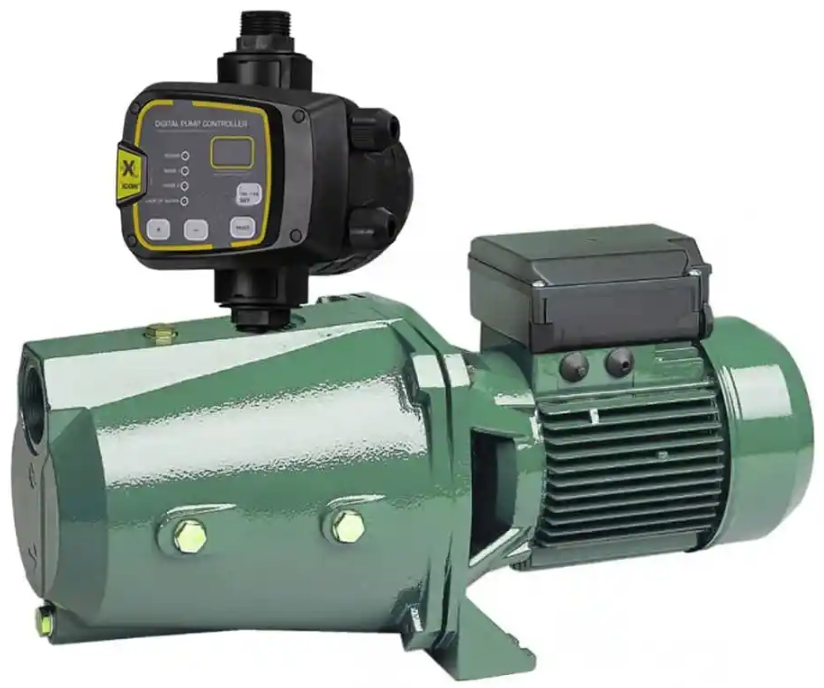

DAB 200NXTP Pro Single Stage Jet Assisted Cast Iron Shallow Well Pressure Pump

DAB pumps offer a large range of pumps suitable for pressure boosting, irrigation and wash down applications. Designed for pumping from tank, rivers and dams. These pumps are very reliable in the toughest of environments. The pumps are single stage jet assisted and constructed of cast iron. Capable of suction up to 8 meters.

Handy Hints for Installing Your Jet Pump

Location: The pump should be located as close to the water source as possible and should be protected from the elements
Piping: Only use pipe that is in good condition and free of rust or scale
Types of Pipe: Plastic or galvanised steel can be used with jet pumps
Water to Pump Piping: All offset piping should slope upwards from water source to pump.

Controller

This pump includes the Bianco iCON nXt PRO series of pump controller.

The nXt PRO Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.

Controller Features

Digital display gives you a real time indication of system pressure
Anti-cycle Protection
Dry run protection with auto restart function that tests for water availability every 24hrs
Anti-seize function if pump has not operated for last 24 hours
Controller automatically restarts pump after a power failure
Easy assembly and removal using push-n-connect fitting with U clip
Complies to AS/NZ 4020 drinking water standard
Over pressure protection turns pump off when 10 bar is reached
Overload protection

Controller Modes

Two operational modes:

Mode One – Adjustable cut in pressure setting.
- Controller stops pump when flow drops.
Mode Two – Adjustable cut in and cut out pressure.
- Shut down governed by pressure. Requires pressure tank.

Controller Flow Curve

nXt PRO Controller Data
Function	ON/OFF + Config
Modes	2
Size	2.2Kw
Rated Voltage	220-240V AC
Max Amps	16
Rated Power	2200w
Rating	IP65
Union Size	1″
Start Pressure	Adjustable
Stop Pressure	Adjustable
Max Pressure	10 bar (145PSI)
Max Liquid Temp	40°C
Cable to Pump	Plug and Play
Flylead for Pump	When sold as control only
Power Cable	10AMP
Communication	–
Accessories (Sold Separately)	15 AMP Cable
Accessories (Sold Separately)	1 ¼” Union Kit
