  • DAB JINOX132NXTP Pro Pressure Pump with nXt Controller (8 Taps)

DAB JINOX132NXTP Pro Pressure Pump with nXt Controller (8 Taps)

$1,149
Quantity:
SKU:
JINOX132NXTP
Weight:
14.00 KGS

Specifications:

Other Details

Output:
1kW
Outlet:
1"
Max Flow:
80 L/Min
Max Head (Pressure):
48m (486kPa)
Bar:
4.8 Bar
Size:
660 x 240 x 290 (mm)
Ideal For:
Clean/Rainwater

Description

Product Description

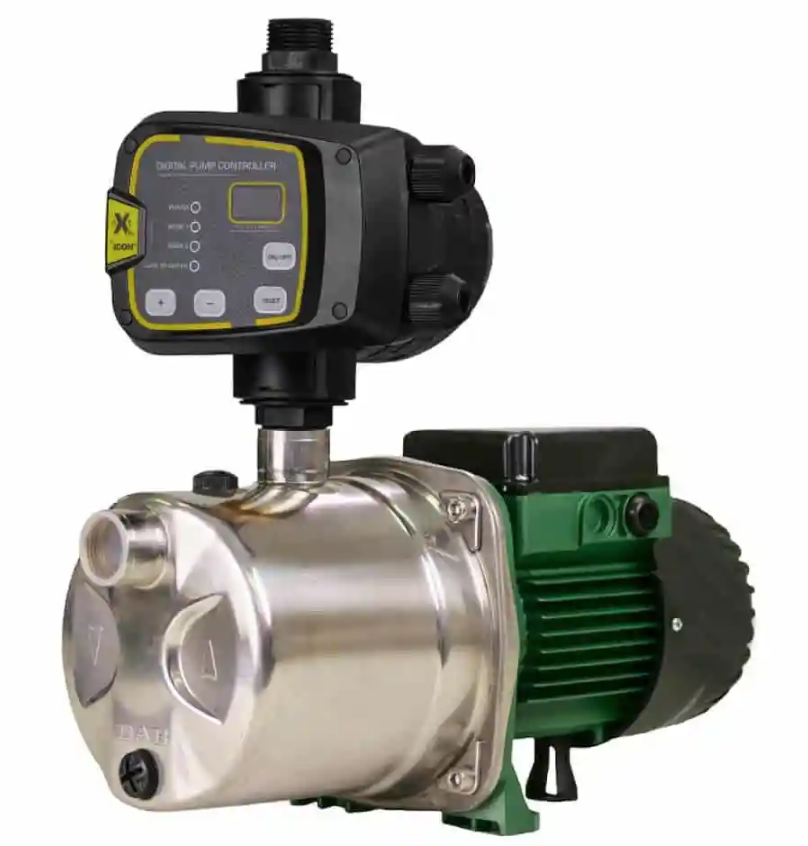

DAB JINOX132NXTP Pro Pressure Pump with nXt Pro Controller

Self priming stainless steel jet pumps. DAB jet pumps are renowned for their unique self priming and extraordinary deep suction capability: up to 9 metres at sea level. They are designed to handle high performance applications and are Corrosion resistant. Self priming for long and difficult suction applications. Electronic pump control with dry run protection and auto restart. Suitable for tanks, dams and creeks. 2 year pump parts & labour warranty.

AS/NZS 4020 Approved for drinking water.

Automatically restarts after water loss or interrupted power.
Dry run protection protects pump from damage
Eliminates water hammer protecting plumbing
Compact size for easier installation



Controller

This pump includes the Bianco iCON nXt PRO series of pump controller.

The nXt PRO Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.

Controller Features
  • Digital display gives you a real time indication of system pressure
  • Anti-cycle Protection
  • Dry run protection with auto restart function that tests for water availability every 24hrs
  • Anti-seize function if pump has not operated for last 24 hours
  • Controller automatically restarts pump after a power failure
  • Easy assembly and removal using push-n-connect fitting with U clip
  • Complies to AS/NZ 4020 drinking water standard
  • Over pressure protection turns pump off when 10 bar is reached
  • Overload protection
Controller Modes

Two operational modes:

  • Mode One – Adjustable cut in pressure setting.
    • Controller stops pump when flow drops.
  • Mode Two – Adjustable cut in and cut out pressure.
    • Shut down governed by pressure. Requires pressure tank.
Controller Flow Curve


nXt PRO Controller Data
Function ON/OFF + Config
Modes 2
Size 2.2Kw
Rated Voltage 220-240V AC
Max Amps 16
Rated Power 2200w
Rating IP65
Union Size 1″
Start Pressure Adjustable
Stop Pressure Adjustable
Max Pressure 10 bar (145PSI)
Max Liquid Temp 40°C
Cable to Pump Plug and Play
Flylead for Pump When sold as control only
Power Cable 10AMP
Communication
Accessories (Sold Separately) 15 AMP Cable
1 ¼” Union Kit

Bianco ICON nXt PRO Pump Controller
