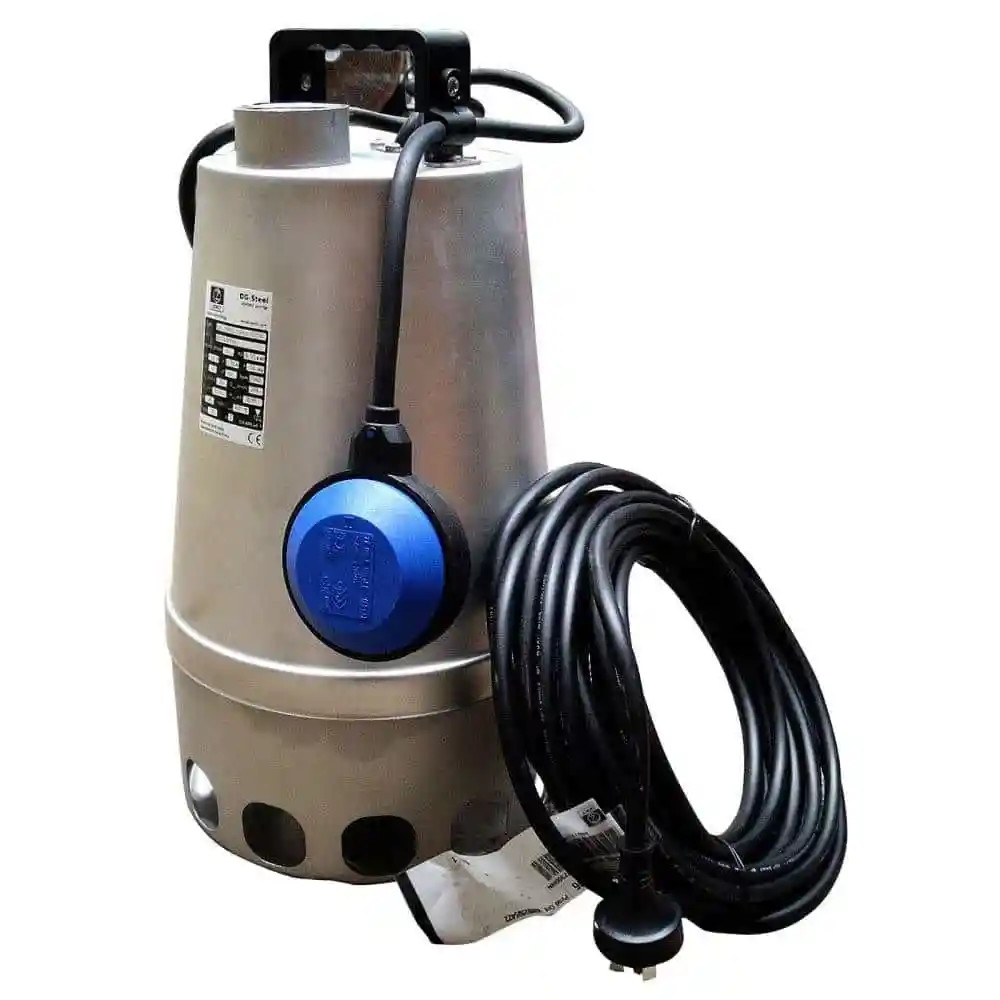

Zenit ZEN-DGSTEEL37MA Submersible Vortex Drainage Pump

Zenit ZEN-DGSTEEL37MA Submersible Vortex Drainage Pump

Drainage pump in 304SS, complete with twin mechanical seals in oil bath and through motor cooling which guarantees motor cooling even at low pumping levels. Designed for storm water, sewerage plants, livestock farms, car washes, hydro-sanitary applications.

The pump is characterised by:

• For clean or slightly dirty water, containing solids up to 25mm
• For sewerage plants, livestock farms, car washes, hydro-sanitary applications.
• Max Head: 8.7 m
• Max Flow: 180 L/min

Liquid:
Clean water temperature range: 2-35°C

Materials:
Pump casing, body: Chrome-nickel steel AISI 304
Strainer, Impeller: Chrome-nickel steel AISI 304
Shaft: AISI 420
Seal (x2): Silicon carbide/graphite alumina mechanical seals in oil chamber
Seal (x1): V-ring in direct contact with the liquid

Installation:
Maximum operating temperature: 40°C
Maximum immersion depth: 10m
Outlet: 1¼” BSPF

Electrical data:
Rated voltage: 240V
Rated output: 0.37 kW (370W)
Horse Power: 0.5HP
Mains frequency: 50 Hz
Current: 3.1 amps
Capacitor: 8uF
Motor duty: Continuous
Motor type: Asynchronous
Motor protection: In-built thermal overload
Ingress protection: IP 68
Insulation class: F
Power cable length: 10 m
Net weight: 8.20KG
Dimensions: 170D x 300H (mm)

2 Year Zenit Pump Warranty – Parts & Labour
