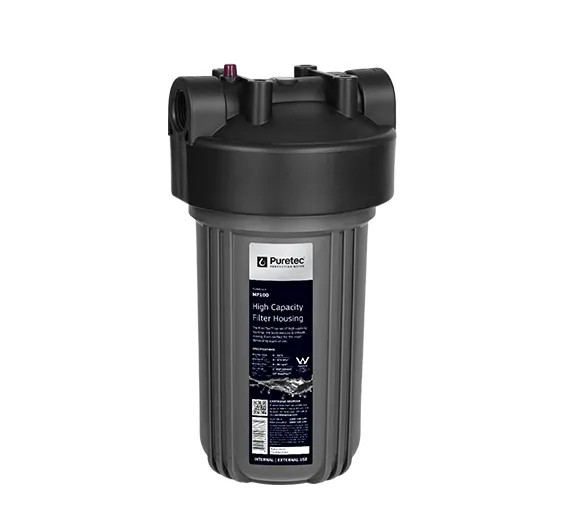

Puretec MP100 MaxiPlus Filter Housing

Puretec MP Series MaxiPlus™ Filter Housings

SKU: MP100

The Puretec MaxiPlus™ filter housings offer the versatility to meet all of your large-capacity filtration needs, including high-flow and heavy sediment applications. The extra large housings allows for greater cartridge capacity, reducing the number of vessels required for high flow-rate applications. Sumps are constructed of durable reinforced polypropylene and are available in both 10” and 20” lengths. The Puretec MaxiPlus™ housings are compatible with a broad range of chemicals. They accept a wide variety of 4½” diameter cartridges in either 10” or 20” lengths.

SPECIFICATIONS
Model Number: MP100
Size (Inches): 10"
Description: Filter housing with grey bowl
Connection: 1" (25mm)
Flow: 80 Lpm
Min/Max Pressure: 0 - 875 kPa
Max Temperature: 52°C
Dimensions (mm): 343 x 185

FEATURES & BENEFITS

• High capacity filter housings.
• Features double O-ring seals for maximum durability.
• Ribbed design provides robust housing for years of trouble-free service.
• Compact and economical, ideal for duplex systems.
• Wide variety of cartridge replacements available.
• Internal and external use to suit different applications.
• UV stabilised.

MATERIALS OF CONSTRUCTION
• Housing: Polypropylene
• Cap: Polypropylene (HFPP)
• Button Assembly: 300-series Stainless Steel, EPDM and Polypropylene
• O-Ring: Buna-N
• Maximum Temperature: 52°C
• Maximum Pressure: 875 kPa
• Colour Black head / Grey bowl
