Specifications:

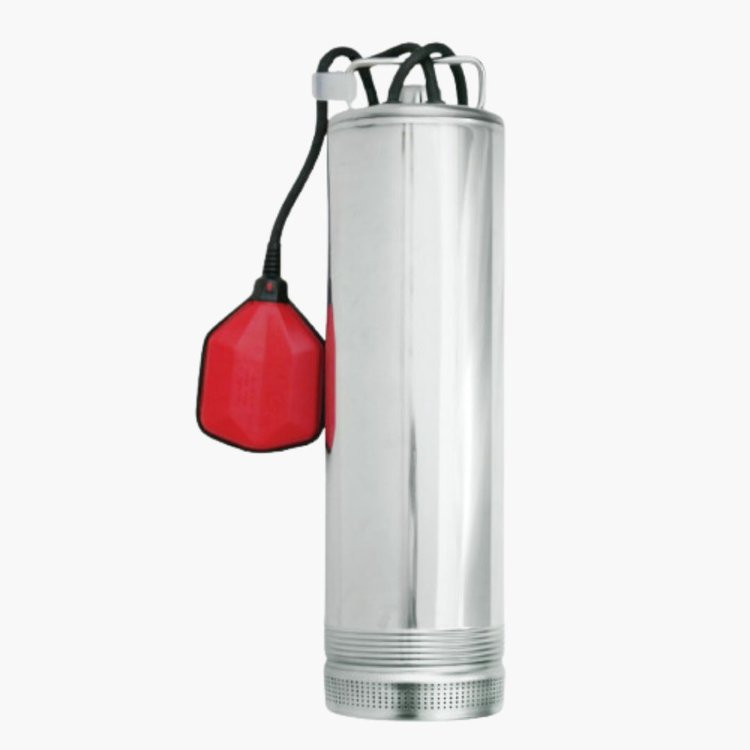

The REEFE multistage pump features a superior construction that is lightweight for ease of installation. Designed to deliver maximum pressure and highly efficient performance, ideal for domestic and commercial applications. Industrial Grade Induction Motors are backed by 2 year manufacturer warranty.
| CODE | 21132 | MODEL | RSME80 |
| AMPS | 12.5 | P1 | P2 | 2.6 | 2.2 |
| HP | 3 | RATED FLOW | 100 L/min |
| RATED HEAD | 49.3m | MAX FLOW | 200 L/min |
| MAX HEAD | 77m | CABLE LENGTH | 20m |
| OUTLET | 40mm | SIZE Ø (mm) | 152 x 561 |
| MAX IMMERSION DEPTH | 17m | ||
Features And Benefits:
Heavy duty, reliable construction for greater longevity Highly versatile, suitable for horizontal and vertical installation Max Immersion up to 17m Lightweight construction for easy installation and maintenance Adjustable depth float switch 20m H07RN-F cable In built overload protection Electrical Safety Approval to AS/NZS 60335.2.41 Max Water Temperature 35°C
Construction:
Stainless Steel AISI 304 pump body, motor, shaft and handle Reinforced polymer impellers & diffusers Alumina/Graphite mechanical seal Carbon ceramic mechanical seal (RSME80 only) Stainless Steel 304 Impellers (RSME80 only) NOTE: The RSME80 Pump must be connected to a 15 Amp power outlet Ingress Protecting IP68 Insulation Class F
Applications:
Clean water transfer Rainwater supply – when integrated with controller Discharge of screened greywater
