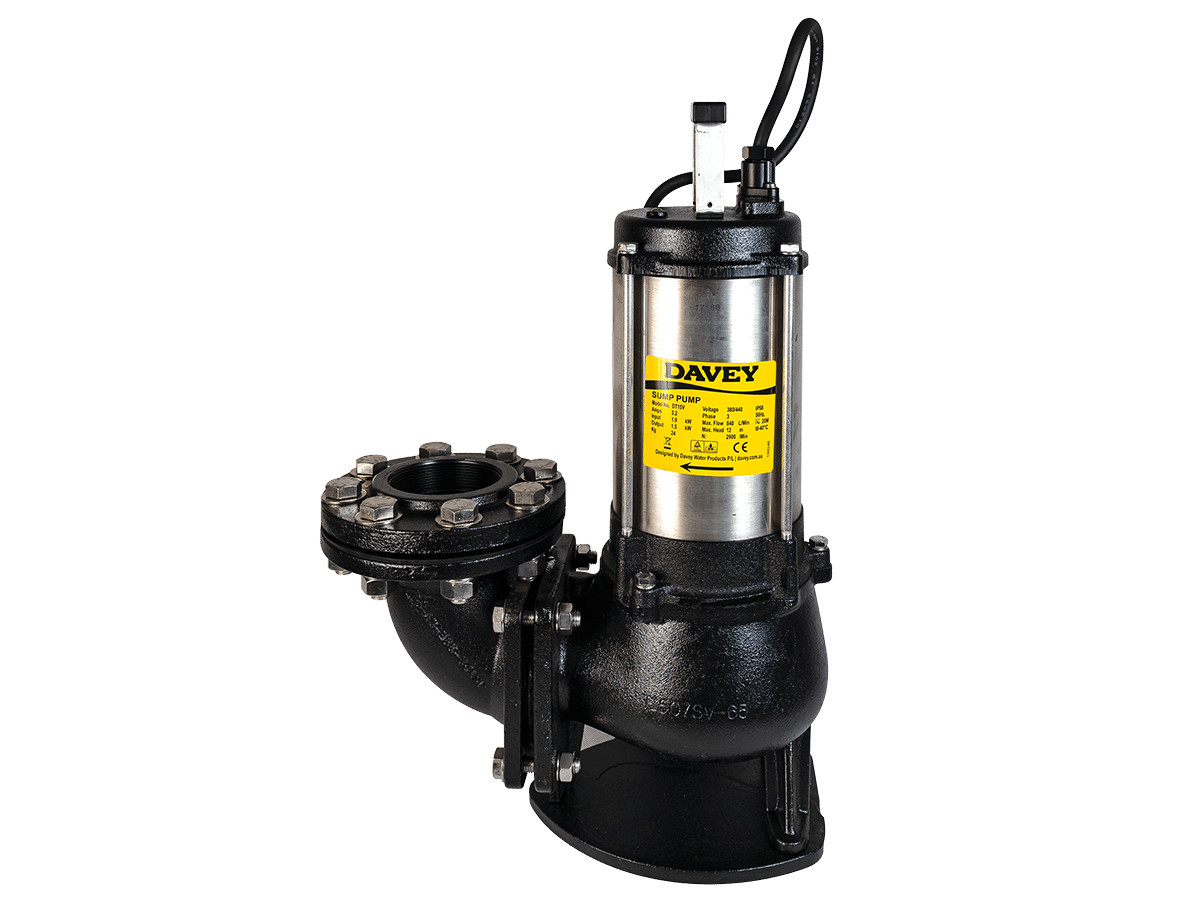

Davey DT15V Vortex Sump Pump

Davey DT15V Vortex Sump Pump 415V

SKU: DT15V

A Davey all-rounder, the General Purpose Vortex Sump Pumps are able to pump clean or grey water of neutral pH, with some soft or fine solids. Suitable applications include sump emptying, septic effluent disposal, water transfer or pumping of light slurries and factory waste. The DT15V models are suitable for pumping clean water or grey water containing some small, soft solids. The vortex, open impeller design is less susceptible to blockages.

Applications
• Grey water pumping
• Sump emptying
• Septic effluent disposal
• Water transfer
• Pumping of light slurries and factory waste

Power: 1500W / 1.5kW
Max. flow: 625LT/min
Head: 9m
Outlet: 3″F / 75mm
Maximum submergence: 20m
Maximum Operation Temperature: 40ºC
Maximum soft solid diameter: 46mm
Warranty on pump: 2 Years

Materials of Construction
Impeller: Cast Iron
Pump casing: Cast Iron
Outlet: Cast Iron
Mechanical seal pump end: Silicon carbide / ceramic
Mechanical seal motor end: Carbon / ceramic
Pump shaft elastomer: Nitrile Rubber
Pump shaft: 304 Stainless Steel
O-rings: Nitrile rubber
Motor shell: 304 stainless steel
Handle: 304 stainless steel
Fasteners: 304 stainless steel

Suitable Fluids: Clean or “grey water” of neutral pH containing up to 20% small soft solids or 1% fine solids. Some wear should be expected while pumping hard solids in suspension.

Electrical Data
Supply Voltage: 380V-415V
Output: 1500W
Starting Amps: 3.0 A
Locked Rotor Current: 22 A
Speed: 1450RPM
Insulation Class: Class F
IP Rating: X8
Starting: DOL
Electrical Lead: Bared wire lead ends on three phase models for easy to connect power supply terminations

Installation & Priming

• Use a rope to position and retrieve the pump. Do not lower or retrieve the pump using the power lead as this may damage the cable entry seals, causing water leaks and unsafe operation.
• Don’t use this product for recirculating or filtering swimming pools, spas, etc. While these pumps are built to high safety standards, they are not approved for installations where people will be in the water while they are operating.
• Don’t pump abrasive materials. Sand and grit in the water being pumped will accelerate wear, causing shortened pump life.
• Keep your pump clean, particularly in situations where lint, hair or fibrous materials may get bound around the pump shaft. Regular inspection and cleaning will extend pump life.
• Make room for the float switch to operate.  automatic models have a float switch to turn them on when the water level rises and turn them off again when it has been pumped down to the safe operating level of the pump. If the float switch is not free to rise and fall, correct pump operation may not be possible.
• Don’t run your pump dry.
